In our increasingly interconnected world, signals are everywhere. From the light that allows us to see, to the invisible waves that carry our phone calls, signals are the fundamental carriers of information. But what exactly are signals, and what different forms do they take? Let's dive into the fascinating world of signals and explore their various types.

At its core, a signal is any physical quantity that varies with time, space, or any other independent variable, and that carries information. This information can be anything from a simple "on" or "off" state to complex data streams like music or video.

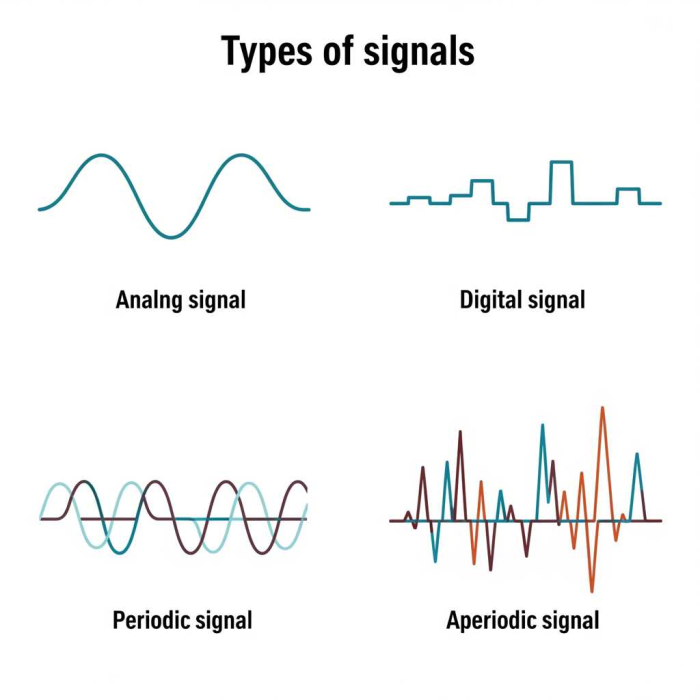

We can broadly categorize signals into two main types:

1. Analog Signals

Imagine the waves in the ocean, smoothly rising and falling, taking on an infinite number of values between their crests and troughs. That's a good analogy for an analog signal.

• Definition: An analog signal is a continuous signal that can take on an infinite number of values within a given range. It directly represents the physical phenomenon it's measuring or transmitting.
• Characteristics:
  • Continuous: Analog signals vary smoothly over time, with no sudden jumps or breaks.
  • Infinite Values: At any given point in time, an analog signal can have any value within its defined range.
  • Direct Representation: Often, the amplitude or frequency of an analog signal directly corresponds to the information being conveyed (e.g., the volume of a sound wave).
• Examples:
  • Sound waves: The vibrations of air molecules when someone speaks or a musical instrument plays.
  • Light waves: The continuous variations in electromagnetic fields that allow us to see.
  • Temperature readings: A thermometer's mercury column rising and falling continuously.
  • Old vinyl records: The grooves on a record are analog representations of sound waves.
  • Human voice: When you speak, the sound waves produced are analog.

2. Digital Signals

Now, imagine flipping a light switch – it's either on or off, no in-between. This "binary" nature is characteristic of digital signals.

• Definition: A digital signal is a discrete signal that represents information using a finite number of distinct values, typically represented by binary digits (0s and 1s).
• Characteristics:
  • Discrete: Digital signals have distinct, separate values at specific points in time.
  • Finite Values: They can only take on a limited number of predetermined values (e.g., high/low, on/off, 0/1).
  • Robustness: Less susceptible to noise and interference compared to analog signals, as small variations don't change the underlying "0" or "1" state.
  • Easily Processed and Stored: Digital signals are ideal for computer processing, storage, and transmission due to their discrete nature.
• Examples:
  • Computer data All the information processed and stored by computers is in digital form (bits and bytes).
  • CDs and DVDs: Music and video are stored digitally as sequences of 0s and 1s.
  • Digital cameras: Images are captured and stored as pixels, each represented by digital data.
  • Mobile phone communication: Although the final output is sound, the signals transmitted over the air are digital.
  • On/Off switch: A simple example of a binary digital signal.

Beyond the Basic Two: Other Important Signal Classifications

While analog and digital are the broadest categories, signals can also be classified based on other characteristics:

• Periodic vs. Aperiodic Signals:
  • Periodic: A signal that repeats its pattern over a fixed period of time (e.g., a sine wave, a clock signal).
  • Aperiodic: A signal that does not repeat its pattern (e.g., speech, a sudden noise).
• Deterministic vs. Random Signals:
  • Deterministic: A signal whose future values can be predicted precisely based on its past values (e.g., a mathematical function like $y = x^2$).
  • Random (or Stochastic): A signal whose future values cannot be precisely predicted and are subject to probability (e.g., noise in an electronic circuit, stock market fluctuations).
• Energy vs. Power Signals:
  • Energy Signal: A signal with finite total energy over its entire duration (e.g., a short pulse).
  • Power Signal: A signal with infinite total energy but finite average power (e.g., a continuous sine wave).
• Continuous-Time vs. Discrete-Time Signals:
  • Continuous-Time: Signals defined for all values of time (often analogous to analog signals).
  • Discrete-Time: Signals defined only at specific, discrete points in time (often analogous to digital signals, but can also represent sampled analog signals).

Why Do These Classifications Matter?

Understanding the different types of signals is crucial in various fields:

• Electronics and Telecommunications: Designing circuits, communication systems, and data transmission methods depends heavily on the type of signal being handled.
• Computer Science: Digital signals are the foundation of all computing, from algorithms to data storage.
• Signal Processing: Whether it's filtering noise from an audio recording or enhancing images, the techniques used vary significantly based on the signal type.
• Measurement and Control Systems: Engineers choose appropriate sensors and actuators based on whether they need to capture or generate analog or digital information.

In conclusion, signals are the silent workhorses of our information age. By understanding their various types and characteristics, we gain a deeper appreciation for how information is captured, transmitted, processed, and ultimately, how our modern world functions. So, the next time you hear a song, make a call, or look at a digital photo, remember the fascinating array of signals working tirelessly behind the scenes!
